ABB IRB 5710 robot offers superior performance for varied applications across industries. This ABB robot promises faster performance and expanded mounting options compared to its competitors in the same class, thanks to ABB’s advanced foundry protection. Upgraded from previous ABB models, the IRB 5710 ranges from four variants according to payload (up to 110kg) and reach (2.3m to 2.7m). Its applications extend from material handling, machine tending and high precision assembly in Electric Vehicle (EV) industry to general die casting, material removal and cleaning for other industries as well. By having ABB’s latest addition deployed in various tasks such as EV battery module picking & placing, it boosts automation efficiency while at the same time providing a safer and more reliable production line in many industrial settings.
€57.000,00
This product sold by vendor
IRB 5710 Key benefits:
• improved motion control and path accuracy enabled through TrueMove as well as QuickMove software
• increased speed and shorter cycle times (up to 25 percent faster than ABB’s IRB 6620 and IRB 6700 models)
• LeanID Integrated DressPack with reduced cable wear and tear and longer service intervals
• robust design for uptime excellence
• flexibility with multiple mounting options for production layouts
• Foundry Plus options for those needing operation in harsh environments
IRB 5710 Key features:
• reach: 2.3 – 2.7 m
• payload: 70 – 110 kg
• protection IP67
• mounting: Floor, tilted max 20°
• controller OmniCore V250XT
Applications:
• EV battery module assembly, picking, placing
• Automotive tier 1 parts handling, and beyond
• General material handling as well as machine tending at high precision levels
Moreover, more process application innovations in welding, cutting, or dispensing are set for release in 2023!
Productivity
Without a doubt this robot is perfect for enhanced speed and accuracy. Due to its powerful mechanical design and OmniCore controller V250XT’s motion control, it offers greater performance than competing robots – up to 25% faster! Therefore with this particular model the manufacturers can easily achieve high-quality results. Unquestionably it is the best choice for automotive and general industries.
| # of Axes | 6-axes |
|---|---|
| Type of system | Articulated |
| Type of robots/model | IRB 5710 |
| Payload (kg) | 110 kg |
| Reach (mm) | 2700 |
| Country of origin | Germany |
| Country of shipment | Germany |
| Vendor | RB0327 |
| Application | Robot, Machine Tending, Material Handling, Pick & Place, Loading |
| Brand / Manufacturer | |
| Mounting | Floor-mounted, Shelf-mounted |
| Other features | High-Precision |
| About Vendor | ABB is a leading global technology company that energizes the transformation of society and industry to achieve a more productive, sustainable future. By connecting software to its electrification, robotics, automation and motion portfolio, ABB pushes the boundaries of technology to drive performance to new levels. With a history of excellence stretching back more than 130 years, ABB’s success is driven by about 105,000 talented employees in over 100 countries |
| Comments |
You must be logged in to post a review.
Assembly
Delivery time: 24 weeks
Some key features:
• Customer signals 4 signals (for IO, Fieldbus, or Ethernet)
• Functional safety SafeMove Collaborative included All safety functions certified to Category 3, PL d
• Axis 1 rotation:
○ Working range: 180° to 180° – Axis max speed: 125°/s
• Axis 2 arm:
○ Working range: 180° to 180° Axis max speed: 125°/s
• Axis 3 arm:
○ Working range: 225° to 85° Axis max speed : 140°/s
• Axis 4 wrist:
○ Working range: 180° to 180° Axis max speed : 200°/s
• Axis 5 bend:
○ Working range: 180° to 180° Axis max speed: 200°/s
• Axis 6 turn:
○ Working range: 270° to 270° Axis max speed:200°/s
• Max TCP Velocity : 2.2 m/s
• Max TCP Acceleration: 11.8 m/s2
• Max TCP Acceleration: 36.9 m/s2
• Max TCP Acceleration: 61.6 m/s2
• Acceleration time 0-1 m/s 0.097 s
• Pose repeatability 0.05 mm
• 1 kg picking cycle
25x300x25 mm : 0.66 s
Machine Tending
Delivery time: 22 weeks
• Available with Food Grade Lubrication, SafeMove, Foundry Plus 2 and Clean Room option
• The robot has Hygienic as an option. Robots with the option Hygienicare equipped with special sealings and coatings, and a special axes 6 stainless steel body and tool flange.
Some key features:
• Axis 1 Rotation motion: +170° to -170°
• Axis 2 Arm motion: +130° to -100°
• Axis 3 Arm motion: +70° to -200°
• Axis 4 Wrist motion: 270° to -270°
• Axis 5 Bend motion: ±130° (not Hygienic robots)
±128° (Hygienic robots)
• Axis 6 Turn motion: Default: +400° to -400° Maximum revolution: ±242°
Arc Welding
The ABB IRB 2600 is a powerful and reliable industrial robot designed to meet the demands of
modern production environments. With its high payload capacity and advanced control technology,
the IRB 2600 can handle a wide range of applications with ease and precision.
Whether you need to automate manual tasks, increase production efficiency,
or improve product quality, the ABB IRB 2600 is the perfect solution for your needs.
The ABB IRB 2600 is a 6-axis robotic arm with a reach of 2.6 meters and a maximum payload capacity of 20kg.
The robot features a compact and robust design, making it suitable for
integration into tight spaces and demanding environments.
Assembly
Delivery time: 26 weeks
Some key features:
• Robot weight: 284 kg
• Maximum Axis speed:
○ Axis 1: 175 °/s
○ Axis 2: 175 °/s
○ Axis 3: 175 °/s
○ Axis 4: 360 °/s
○ Axis 5: 360 °/s
○ Axis 6: 500 °/s
• Repeatability: 0.023 mm
Assembly
Downsizing the equipment
– Installation of the inverted mount provides space saving for equipment layout.
High speed operation with the shortest path
– Thanks to its slim arm, high speed operation is possible.
– Inverted mounting allows the robot to travel the shortest path.
Smart cable routing
– A large, 36 mm-diameter hole in the tip of the wrist.
– With all wires and tubes built into the machine body, the risk of interference is reduced and reliability is improved.
Assembly
Delivery time: 28 weeks
ABB CRB 15000 key features:
• Customer signals 4 signals (for IO, Fieldbus, or Ethernet)
• Functional safety SafeMove Collaborative included all safety functions certified to category 3, PL d
• Axis 1 rotation:
○ Working range: 180° to 180°
○ Axis max speed: 125°/s
• Axis 2 arm:
○ Working range: 180° to 180°
○ Axis max speed: 125°/s
• Axis 3 arm:
○ Working range: 225° to 85°
○ Axis max speed : 140°/s
• Axis 4 wrist:
○ Working range: 180° to 180°
○ Axis max speed : 200°/s
• Axis 5 bend:
○ Working range: 180° to 180°
○ Axis max speed: 200°/s
• Axis 6 turn:
○ Working range: 270° to 270°
○ Axis max speed:200°/s
• Max TCP Velocity : 2.2 m/s
• Max TCP Acceleration: 11.8 m/s2
• Max TCP Acceleration: 36.9 m/s2
• Max TCP Acceleration: 61.6 m/s2
• Acceleration time 0?1 m/s 0.097 s
• Pose repeatability 0.05 mm
• 1 kg picking cycle: 25 x 300 x 25 mm : 0.66 s
Full System

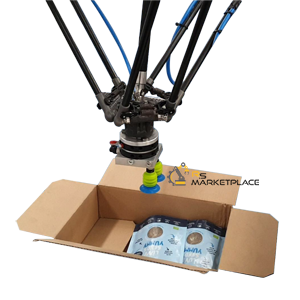

Pick and place solution key features:
● Packaging 100 products per minute
Ultra fast packaging of up to 6000 products per hour is possible with automated pick and place solutions. This advanced technology uses specialized robotics to quickly package products, which eliminates the costly and time consuming manual labor traditionally used in production. Combined with other high performance packaging systems, the pick and place solution has led to a more efficient production process than ever before, reducing downtime and increasing production speeds. With this innovative technology, businesses can reduce costs while enjoying a higher class of product output.
● Valid for multiple productions
For production professionals looking for a reliable pick and place solution, the technology that can instantly reconfigure to package any production is an invaluable asset. Thanks to this innovation, businesses in the production industry can now rest assured that their work process is made more efficient and secure due to the automation of packaging. It effectively allows businesses to manage large volumes of products quickly and with ease while also reducing labor-intensity. Ultimately, this revolutionary package reconfiguration allows your business to become cost-effective, resourceful, and most importantly, better organized.
Cobot for various applications
Key features:
• Weight: 43 kg
• Payload: 10 kg
• Reach range: 1300 mm
• Power: 350 W
• Joint range: ±360°
• Joint maximum speed:
J1-J2 100°/s
J3-J4 150°/s
J5-J6 180°/s
• Total maximum speed: 2 m/s
• Repeatability: ± 0,05 mm
• Degrees of freedom: 6
• End I/O port: Digital input: 3, Digital output: 3, Analog input: 2
• I/O power: 24 V 2A
• Communications: TCP/IP and Modbus
• IP level: IP54/66
• Collaborative operation: 10 advanced security configuration features
• Main material: aluminum alloy
• Working temperature: 0-50°C
• External power input: 200-240V AC, 50-60Hz
• Cable: Cable to control cabinet: 5m, cable to teach pendant: 5m
Assembly
Delivery time: 24 weeks
Some key features:
• Customer signals 4 signals (for IO, Fieldbus, or Ethernet)
• Functional safety SafeMove Collaborative included All safety functions certified to Category 3, PL d
• Axis 1 rotation:
○ Working range: 180° to 180° – Axis max speed: 125°/s
• Axis 2 arm:
○ Working range: 180° to 180° Axis max speed: 125°/s
• Axis 3 arm:
○ Working range: 225° to 85° Axis max speed : 140°/s
• Axis 4 wrist:
○ Working range: 180° to 180° Axis max speed : 200°/s
• Axis 5 bend:
○ Working range: 180° to 180° Axis max speed: 200°/s
• Axis 6 turn:
○ Working range: 270° to 270° Axis max speed:200°/s
• Max TCP Velocity : 2.2 m/s
• Max TCP Acceleration: 11.8 m/s2
• Max TCP Acceleration: 36.9 m/s2
• Max TCP Acceleration: 61.6 m/s2
• Acceleration time 0-1 m/s 0.097 s
• Pose repeatability 0.05 mm
• 1 kg picking cycle
25x300x25 mm : 0.66 s
Pick & Place
Some key features:
• Repeatability: ± 0.016mm
• Max speed:
J1: 288ᵒ/s
J2: 460ᵒ /s
J3: 540ᵒ /s
J4: 452ᵒ /s
• Max operation area:
J1: ±139ᵒ
J2: ± 145ᵒ
J4: 360ᵒ
• Handing time: 0.4 sec
Services:
• 7*16 hours online Q&A
• Rapid response to important urgent on-site problems
• Quick resolution within 4 hours
• Factory multi-to-one professional technical team provides real-time
• Professional online technical support
Free training:
• Supply free training for integrators, including board and lodging
Material Handling
This Fanuc LR Mate Robot is a human arm-sized robot, providing compact solutions for fast handling and processing parts.
