1 in stock
This product sold by vendor

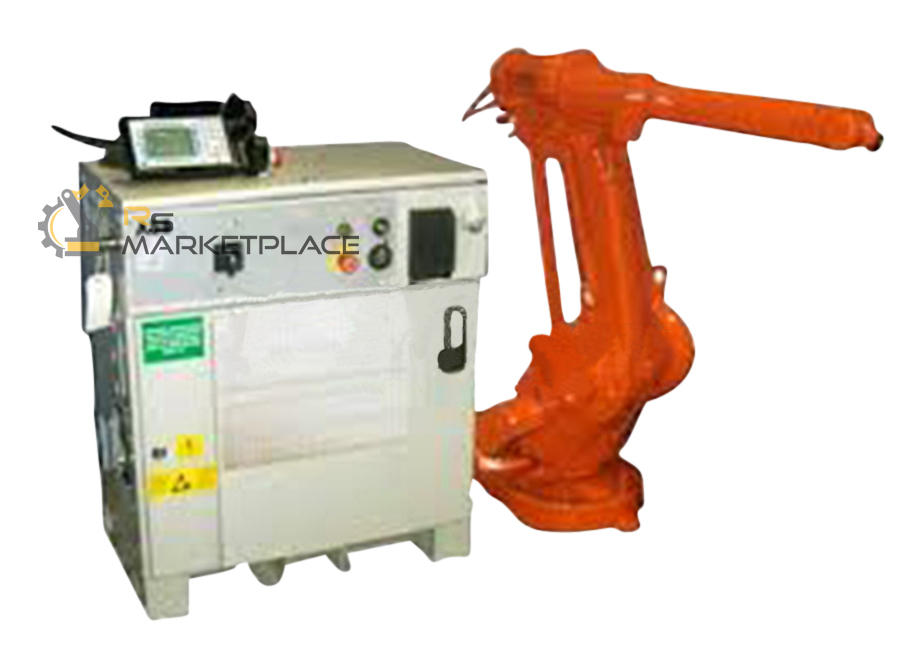

ABB IRB 1400 robot is fast, reliable, and affordable, making it the perfect choice for companies looking to automatize their production lines. IRB 1400 S4C M98 and S4C+ M2000 controllers, are ideal for a limited work place when a large work-processing area is required. The IRB 1400 will increase productivity with its fast and reliable work cycles, long maintenance intervals and low noise levels. Less maintenance means more profits resulting from less down time. IRB 1400 S4C M98A and S4C+ M2000, is a favourite for any company in need of an arc welder, material handling, and process applications. With a handling capacity of 5kg and a supplementary load on the upper arm that can handle 18kg, combined with speed and accuracy allowing for high performance operations.?
| Weight | 5 kg |
|---|---|
| Dimensions | 1440 mm |
| Brand / Manufacturer | |
| Application | Assembly, Material Handling, Welding, Arc Welding, Other |
| Reach (mm) | 1440 |
| Payload (kg) | 5 |
| # of Axes | 6-axes |
| Type of robots/model | IRB 1400 |
| Control | S4C M98A |
| Mounting | Floor-mounted |
| State of product | Used |
| Country of shipment | Spain |
| Vendor | RB012-0075-RG |
| Reach Range (mm) | 1001 – 2000 |
| Payload Range (kg) | 3 – 9 |
| About Vendor | |
| Comments | Repeatability:0.05 mm Axis motion speed: ? Axis 1: 110?/s ? Axis 2: 110?/s ? Axis 3: 110?/s ? Axis 4: 280?/s ? Axis 5: 280?/s ? Axis 6: 280?/s Weight: 225 kg |
You must be logged in to post a review.
Material Handling
Fanuc R2000i with RJ3iB controller industrial robot is a 6 axis robot used by automotive companies worldwide. It is among the fastest robot arms in its class. This makes the R2000i very useful in many applications where the ability to fit in confined spaces is important, even the narrow wrist helps in this. The wrist of the R2000i has an IP rating of IP67 and the rest of the arm is IP54. It is mounted on a 4.6 m long linear track, thus providing maximum range. Lower arm is single sided; this allows the robot to ?flip over? and work behind itself. The arm is light, fast and compact so it is without a doubt a very multipurpose robot. The R2000i comes with the Fanuc RJ3iB controller. Benefits of the RJ3iB include fast boot up time, excellent connectivity, powerful programming language, built in safety circuits, expandable I/O and bus options.
Material Handling
The ABB IRB 4400 is an extremely fast and compact robot for handling medium and heavy loads. The load capacity of up to 45 Kg at very high speeds generally allows working with two pieces at once. The M94A version with the S4 controller allows the QUICK programming instruction to facilitate programming. Its design allows long intervals between different maintenance routine intervals. Due to its high maneuverability, the ABB IRB 4400 is highly suitable for tasks that require speed and flexibility.
Assembly
The Fanuc R-2000iB 210F is a floor mounted 6 axis robot. It’s payload of 210 kg and a 2655 mm horizontal reach makes it suitable for many applications including welding, material handling and assembling. The Fanuc R-2000iB has a slim wrist and arm design enabling it to fit into confined spaces. It gives manufacturers greater versatility when dealing with heavy duty workloads. The R-30iA Controller uses advanced technology packaged in a reliable and efficient design. Process capability and open architecture features provide intelligence to improve application and motion performance whilst simplifying system integration. The controller offers controls acceleration and deceleration times. This leads to shorter cycle times. The controller provides an integrated 2D vision system to speed up the installation of vision applications and this can be easily upgraded to a 3D vision system.
Assembly
The ABB IRB 6400 REX is one of the most installed robots in the world. They have been used by most of the major automotive manufacturers for nearly 15 years. IRB 6400 REX is a 6-axis industrial robot, designed specifically for manufacturing industries that use flexible robot-based automation. The robot has an open structure that is specially adapted for flexible use, and can communicate extensively with external systems. Have an excellent reputation for reliability and capability and as such are the industry standard. Robot arm uses epicyclic gearboxes for the major axis and is both simple and reliable. The arm is also very rugged and is less vulnerable to damage than many of its competitors. Is entirely powered by ac servo motors, the “rams” on the side of the arms are not hydraulic or pneumatic, they are simply enclosed mechanical springs. The springs and weight on the back of the robot make it very well balanced meaning the forces required to move the robot are remarkably small. Life expectancy is largely dependent on service practices (once a year is normal) but expected to last for at least 100,000 hours.
Assembly
The KR 210L150-2 2000 KRC2 Ed05 comprises a spherical work space, making it ideal for installations where space saving is sought. Equipped with KRC2 Ed05 controller running under Windows XP. The KRC2 Ed05 controller facilitates programming through the Microsoft Windows user interface. It is expandable, it can be integrated into networks via a bus. The KRC2 Ed05 controller is characterized by having open PC technology and network-compatible. It has free slots for installing additional axes, Device Net and Ethernet for common bus systems. It includes floppy drives and CD-ROMs for data backup Ease of operation and programming via the KUKA Control-Panel (KCP) with Windows user interface programming console.
Laser Applications
ABB IRB 1600ID (Integrated Dressing) robot model is designed for arc welding. The wiring situation and the process hoses are located inside the upper arm. Therefore, failures due to wiring breakage are avoided. Cables and hoses last longer with this protection configuration. ABB IRB 1600iD, consists of 6 axes and can be installed in any position: floor, ceiling or at an angle.This ABB IRB 1600ID uses the IRC5 robot controller, which is equipped with a trajectory control system, friendly programming unit, flexible RAPID language and extensive communication possibilities. Also available in multi move version, consisting of – 2 ABB IRB 1600iD robots – 1 IRC5 control – 1 teach pendant
Welding
Cobots
Material Handling
Introducing the KUKA KR6 R700 sixx robot, a top-of-the-line 6-axis robot arm that offers exceptional performance and versatility. This advanced industrial robot is perfect for low payload material handling applications, thanks to its 6 kg payload and 706.7 mm reach. It provides precise and accurate movements with a repeatability of 0.03 mm, making it a reliable choice for any task.
The KUKA KR 6 R700 sixx robot is highly adaptable, making it suitable for a wide range of applications, such as arc welding, dispensing, remote tcp, and spot welding. As such, it can be utilized in various industries, including automotive, aerospace, and electronics.
Equipped with the KUKA KR C4 controller, this used KUKA robot can use both the compact and small size versions of the KRC4 controller. Additionally, it has an IP54 protection rating, which ensures that it can withstand harsh environments.
The KR 6 R700 sixx robot is designed to optimize dynamic performance with a rated payload of 3 kg. However, it can handle a maximum payload of up to 6 kg, thanks to reduced load center distances and favorable supplementary loads. To verify the specific KUKA Load case, please contact KUKA Service for further consultation.
With a robot mass of 50 kg, the KUKA KR 6 R700 sixx robot is a compact and lightweight machine that can be easily integrated into any production line. It’s an excellent choice for manufacturers who require flexibility and efficiency in their operations.
In summary, the KUKA KR 6 R700 sixx robot is a top-performing robot that offers exceptional speed, accuracy, and flexibility. Its advanced features make it a reliable choice for any low payload material handling application. Contact KUKA Service for further consultation and take advantage of this exceptional robot today.
Assembly
The UR6 is a lightweight, adaptable collaborative industrial robot that tackles medium-duty applications with ultimate flexibility. The robot is designed for seamless integration into a wide range of applications.
Cutting
This lightweight robot features a slim wrist, rigid arm and small footprint.
