• High standard quality services
• Painting applications for metal and plastic components
• DACH regions
* Starting price
€89.560,00
This product sold by vendor

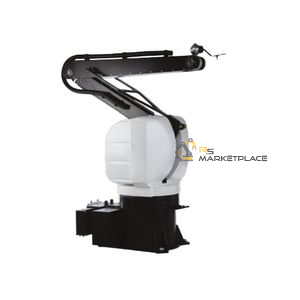

Some key features:
• Total weight: 380 Kg
• Repeatability: ±3 mm at the wrist
• Full speed: 1000 mm/s
• Possible configurations: Upside down, floor, carriage, carousel
• Power supply: 3×400 VAC
• Programming: Self-learning, Point to point lite, offline
• Painting for wood, metal and plastic components
• Additional systems: 2D and 3D vision systems
| # of Axes | 6-axes |
|---|---|
| Type of system | Articulated |
| Payload (kg) | 4 |
| Country of origin | Switzerland / Italy |
| Country of shipment | Switzerland |
| Vendor | SP011-0191-RT |
| Application | Robot, Painting |
| Industry | Metal, Plastics, Wood |
| Mounting | Floor-mounted, Ceiling-mounted |
| About Vendor | Our vendor is revolutionising the manufacturing industry by providing high-tech robots to small and medium-sized enterprises for a monthly wage of a painter. Our vendor is specialist in the following applications: painting, sandblasting, washing, spraying. Their main focus is to offer high quality standard services. |
| Comments | Protection class: ATEX zone 2/22 Cat. 3G |
You must be logged in to post a review.
Painting
The software is associated with a 3D scanner used with the carousel system. This scanner
is able to identify the surface load of three-dimensional objects and generate a painting path autonomously.
Directly from the Robot Controller screen it is possible to create specific recipes for each type of product
that needs painting. Each program can then be recalled by reading the barcode though a scanner or directly
from the touch screen.
Some key features:
• No thickness limits
• Able to generate painting paths even for curved items.
• Painting for wood, metal and plastic components
Painting
The product is a system composed of a dedicated software and a pair of photoelectric barriers. It is used on a line, and can identify 2D surfaces.
It creates the painting path independently and associates it with a recipe that can be set by an operator. The recipe is based on a series of spraying parameter.
During an initial work phase, recipes are created for each piece, once that’s completed, the only thing left to do is to load the conveyor with the pieces needing to be painted.
The 2D system recognizes the parts, associating them with the corresponding recipe and creates the best painting path.
Painting
Some key features:
• Total weight: 320 Kg
• Repeatability: ±3 mm at the wrist
• Full speed: 1000 mm/s
• Possible configurations: Upside down, floor, carriage, carousel
• Power supply: 3×400 VAC
• Programming: Self-learning, Point to point lite, offline
• Ideal for wooden chairs painting
• Painting for wood, metal and plastic components
• Additional systems: 2D and 3D vision systems
Painting
The software allows the following changes:
• Speed
• Acceleration
• Distance from the piece
• Gun parameters
• Painting corner
How does it work?
• Import of 3D models in STL and STEP format
• 360 ° view of the environment surrounding the robot (even during simulation)
• Creation of automatic grids on surfaces to help generate the paths
• Creation of automatic grids on surfaces to facilitate the generation of paths
• Robot cycle simulation, with verification of reach limits and cycle times
Painting
Some key features:
• Repeatability: ±3 mm at the wrist
• Full speed: 700 mm/s
• Power supply: 3×400 VAC
• Programming: Offline
• Time effective solution: The wrist is applied to a linear belt guide
• Flexibility: Length, height and depth of the structure can be customized
• Additional systems: 2D and 3D vision systems
Full System
The company is offering the following applications:
• Painting
• Sandblasting
• Washing
• Spraying
What can be painted:
• Woods chairs
• Windows frames
• Boxes
• Drawers
• Curved, shaped and non standard shape
What makes the services so special:
• Anti collision system: especially made to protect from overloads and shocks.
• Equipment and security devices.
• Large offering of robots according to the customer needs especially 3 axes, 5 axis, 6 axis articulated robots as well as cartesian robots
Large offering of accessories as:
• Software: Control and management of the robots
• Software option dedicated to powder systems
• Software options dedicated to liquid systems
• Software options dedicated to fiberglass, gelcoat, and resin systems
• 3D scanner software: allows to generate a painting path autonomously
• Plug-in feature: permits to physically direct the spray gun to the selected points and confirming chosen locations with a click on the joystick
• Painting guns: Able of blowing or sucking excess water and moisture
from the surface of the piece.
