• High standard quality services
• Ideal for painting frames and windows
• Robust: Chain is used to handle the wagon
• Time effective solution
• Can be customized
This product sold by vendor

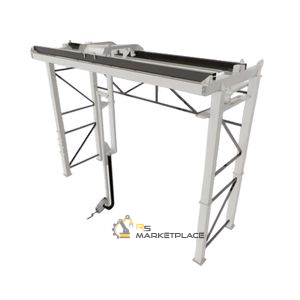

Some key features:
• Repeatability: ±3 mm at the wrist
• Full speed: 700 mm/s
• Power supply: 3×400 VAC
• Programming: Offline

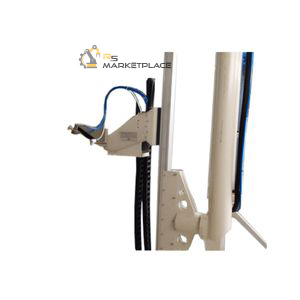

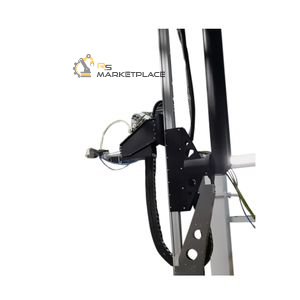

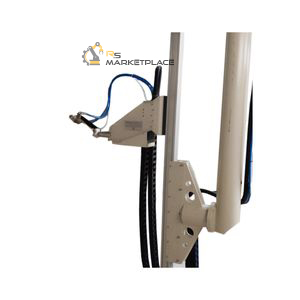

• Time effective solution: The wrist is applied to a linear belt guide
• Flexibility: Length, height and depth of the structure can be customized
• Additional systems: 2D and 3D vision systems
| # of Axes | 5-axes |
|---|---|
| Type of system | Cartesian |
| Payload (kg) | 4 |
| Country of origin | Switzerland / Italy |
| Country of shipment | Switzerland |
| Vendor | SP011-0191-RT |
| Application | Robot, Painting |
| Industry | Metal, Plastics, Wood |
| About Vendor | Our vendor is revolutionizing the manufacturing industry by providing high-tech robots to small and medium-sized enterprises for a monthly wage of a painter. Our vendor is specialist in the following applications: painting, sandblasting, washing, spraying. Their main focus is to offer high quality standard services. |
| Comments | Protection class: ATEX zona 2/22 Cat. 3G |
You must be logged in to post a review.
Painting
Some key features:
• Total weight: 320 Kg
• Repeatability: ±3 mm at the wrist
• Full speed: 1000 mm/s
• Possible configurations: Upside down, floor, carriage, carousel
• Power supply: 3×400 VAC
• Programming: Self-learning, Point to point lite, offline
• Ideal for wooden chairs painting
• Painting for wood, metal and plastic components
• Additional systems: 2D and 3D vision systems
Painting
The 3D Image system is a system consisting of management software and one or more 3D scanners mounted on a line capable of recognizing the size of three-dimensional objects and associating the corresponding painting program.
In a first phase of work the programs for each type of piece are created, after which it is simply necessary to load the supply line with the pieces to be painted.
The 3D image system pro will take care of recognizing the pieces through its 3D scanners and applying the relative painting program.
It recognizes the inclination and position of the pieces and automatically adjusts the painting path.
It can distinguish between objects of different thickness.
It recognizes the real position and adjusts the painting path.
Painting
How to use it ?
At the time of loading, a tag is physically placed on the hanger and when it arrives near the robot, the tag is identified by the antenna which automatically allows the robot to run the corresponding painting program.
The digitized process can provide these parameters:
• Position of the piece in line
• Setting oven temperature, washing cycle and painting recipes (when reciprocators are present)
• Total cycle time
• Ability to catalog all products by code, object, or macro-family
• Possibility to send production orders from your office directly to Management system TAG WEB
Features:
• Synoptic plan of your plant available on the rear panel with a display of various processing stations and component positions.
• Management, storage, and record of production stops and alarm.
• Monitors various IO signals
• Instructions (text or PDF / JPG images) for correct uploading, downloading and masking on the touch panel (optionally on smart TV)
Full System
The company is offering the following applications:
• Painting
• Sandblasting
• Washing
• Spraying
What can be painted:
• Woods chairs
• Windows frames
• Boxes
• Drawers
• Curved, shaped and non standard shape
What makes the services so special:
• Anti collision system: especially made to protect from overloads and shocks.
• Equipment and security devices.
• Large offering of robots according to the customer needs especially 3 axes, 5 axis, 6 axis articulated robots as well as cartesian robots
Large offering of accessories as:
• Software: Control and management of the robots
• Software option dedicated to powder systems
• Software options dedicated to liquid systems
• Software options dedicated to fiberglass, gelcoat, and resin systems
• 3D scanner software: allows to generate a painting path autonomously
• Plug-in feature: permits to physically direct the spray gun to the selected points and confirming chosen locations with a click on the joystick
• Painting guns: Able of blowing or sucking excess water and moisture
from the surface of the piece.
Painting
Some key features:
• Total weight: 380 Kg
• Repeatability: ±3 mm at the wrist
• Full speed: 1000 mm/s
• Possible configurations: Upside down, floor, carriage, carousel
• Power supply: 3×400 VAC
• Programming: Self-learning, Point to point lite, offline
• Painting for wood, metal and plastic components
• Additional systems: 2D and 3D vision systems
Painting
Some key features:
• Arm material: Casting of light alloys
• Repeatability: ±0,05 mm at the wrist
• Full speed: 1500 mm/s
• Possible configurations: Floor, carriage, carousel
• Power supply: 3×400 VAC
• Programming: 2D and 3D vision systems
• Additional systems: Image 2D and 3D systems
Material Handling
Introducing the KUKA KR6 R700 sixx robot, a top-of-the-line 6-axis robot arm that offers exceptional performance and versatility. This advanced industrial robot is perfect for low payload material handling applications, thanks to its 6 kg payload and 706.7 mm reach. It provides precise and accurate movements with a repeatability of 0.03 mm, making it a reliable choice for any task.
The KUKA KR 6 R700 sixx robot is highly adaptable, making it suitable for a wide range of applications, such as arc welding, dispensing, remote tcp, and spot welding. As such, it can be utilized in various industries, including automotive, aerospace, and electronics.
Equipped with the KUKA KR C4 controller, this used KUKA robot can use both the compact and small size versions of the KRC4 controller. Additionally, it has an IP54 protection rating, which ensures that it can withstand harsh environments.
The KR 6 R700 sixx robot is designed to optimize dynamic performance with a rated payload of 3 kg. However, it can handle a maximum payload of up to 6 kg, thanks to reduced load center distances and favorable supplementary loads. To verify the specific KUKA Load case, please contact KUKA Service for further consultation.
With a robot mass of 50 kg, the KUKA KR 6 R700 sixx robot is a compact and lightweight machine that can be easily integrated into any production line. It’s an excellent choice for manufacturers who require flexibility and efficiency in their operations.
In summary, the KUKA KR 6 R700 sixx robot is a top-performing robot that offers exceptional speed, accuracy, and flexibility. Its advanced features make it a reliable choice for any low payload material handling application. Contact KUKA Service for further consultation and take advantage of this exceptional robot today.
Material Handling
The KR 240-2 is part of KUKAs Series 2000 robots. Due to it?s modular design and a wide range of expansion options, this all-rounder can be quickly upgraded or converted to suit your application.
Assembly
Designed for applications calings for high speeds and high repeatability.
With a wrist designed to optimize movements, this compact robot can easily support a 6kg payload.
Material Handling
This industrial robot?is a top performer in its class due to its high flexibility and long reach with optimal payload capacity.
Machine Tending
AUBO COBOT I5 SPECIFICATIONS
Degrees of Freedom: 6 axes
Reach: 924 mm
Payload: 5 Kg
Weight: 24 Kg
Lifetime: 30000 h
Collaborative operation according to ISO 10218-1 :2001
Certification Compliance with EU CE certification, North American
certification, Korean KCs certification
Repeatability: +/- 0.02 mm
Linear Velocity <= 2.8 m/s
Power Consumption: 200 W (under normal working conditions)
Materials: Aluminum, Steel, Plastic
Ambient Humidity: 25% – 85%
Ambient Temperature: 0 – 45° C
IP Classification IP54
Programing Teach pendant with user interface
Communication CAN bus
Motor Type DC 48 V
Installation Orientation Any Ceiling, Floor, Wall
With the Aubo Cobot i5, users can benefit from its automated features that make it stand out from other robots. This cobot comes hand in hand with an easy-to-use guide to teach end users who may not be experienced in robotics. It is also ROS (Robot Operating System) compatible. Addressing safety concerns, this cobot comes with real-time feedback from the motor drives and emergency stop functions with braking distances less than 1mm. Additionally, this robot offers simulation and programming via a touch pendent for load and path testing. Altogether, these features make the Aubo Cobot i5 worth considering as it provides a versatile robotic system for many automation tasks without sacrificing safety or ease of control.
